TMR-05A

TMR-05A Two-Wire Self-Adhesive TM Reader

The TMR-05 stripped to two wires — DATA and GND, nothing else to connect.

The same zinc-alloy body, the same 3M VHB adhesive back, the same 9.87 mm profile — without the LED. That leaves exactly two wires: red DATA and black GND. For controllers that have no spare output to drive an indicator, or installations where an indicator light is not needed, this is the two-wire version, designed for quick fitting with a simple connection. Peel, press, land two cores on the terminal block, done — no drilling, no nut, no cut-out, and no discussion about which colour means what. Compatibility depends on your controller; test a sample on your own system before ordering.

Ordering information

MOQ	Confirmed by model and order when quoting
Preparation time	Availability and lead time are confirmed by model and order when quoting
Packing	Confirm pack quantity, protection and labelling for the selected model.
Samples	Sample quantity, fees and shipping are confirmed for the selected model.
Payment	Agree payment terms and the payee in the quotation and invoice.
Shipping	Confirm the shipping method, cost and timing for your destination and order.
Customization	State ROM, colour, marking and packing needs; feasibility and cost require confirmation.

Why this model

Two wires is the feature, not a limitation

Wiring mistakes are a common cause of reader faults on site, and every extra core is another chance to make one. The TMR-05A removes the LED pair entirely: red to DATA, black to GND, and there is no third possibility to get wrong. That matters when the installer is on a ladder, when the controller genuinely has no spare output, or when the reader goes somewhere nobody will ever glance at an indicator — a gate post, a plant-room door, an unattended cabinet. Everything else is identical to the TMR-05: same zinc-alloy face, same 3M VHB pad, same 9.87 mm depth, same optional screw holes. If you do want visual feedback, order the TMR-05 instead; the panel cut-out and mounting are unchanged, so you can mix both across one site.

Key features

Two-line design — red DATA and black GND, the simplest wiring in the reader range.

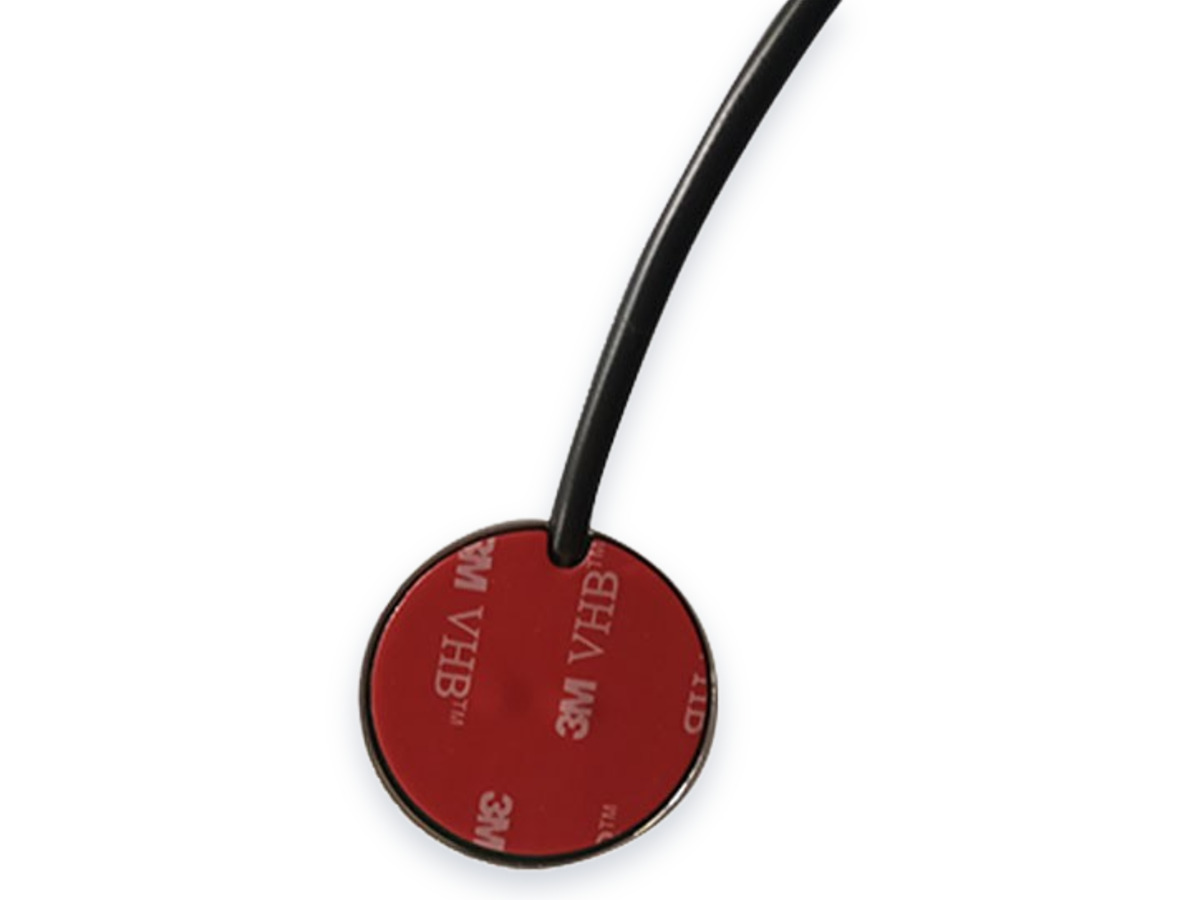

3M VHB self-adhesive pad on the back — peel, press and it is mounted; no drilling needed.
Solid zinc-alloy body with chrome-plated copper contact; self-aligning face guides the key.
Only 9.87 mm deep, Ø37.02 mm flange, Ø16.70 mm contact ring; two Ø4.50 mm screw holes at 28.80 mm pitch for optional fixing.
Same body and mounting as the TMR-05 — mix LED and non-LED units across one site without changing the fixing.

Specifications

Chip / compatibility	Model TMR-05A · for DS1990A / TM1990A / RW1990 projects; verify the supplied key and reader versions with the target controller
Package	Die-cast solid zinc-alloy (kirksite) body, chrome-plated copper centre contact · Ø37.02 mm flange, Ø16.70 mm contact ring, only 9.87 mm deep
Mounting	Surface mount on a 3M VHB self-adhesive pad — no drilling; optional screw fixing via two Ø4.50 mm holes at 28.80 mm pitch

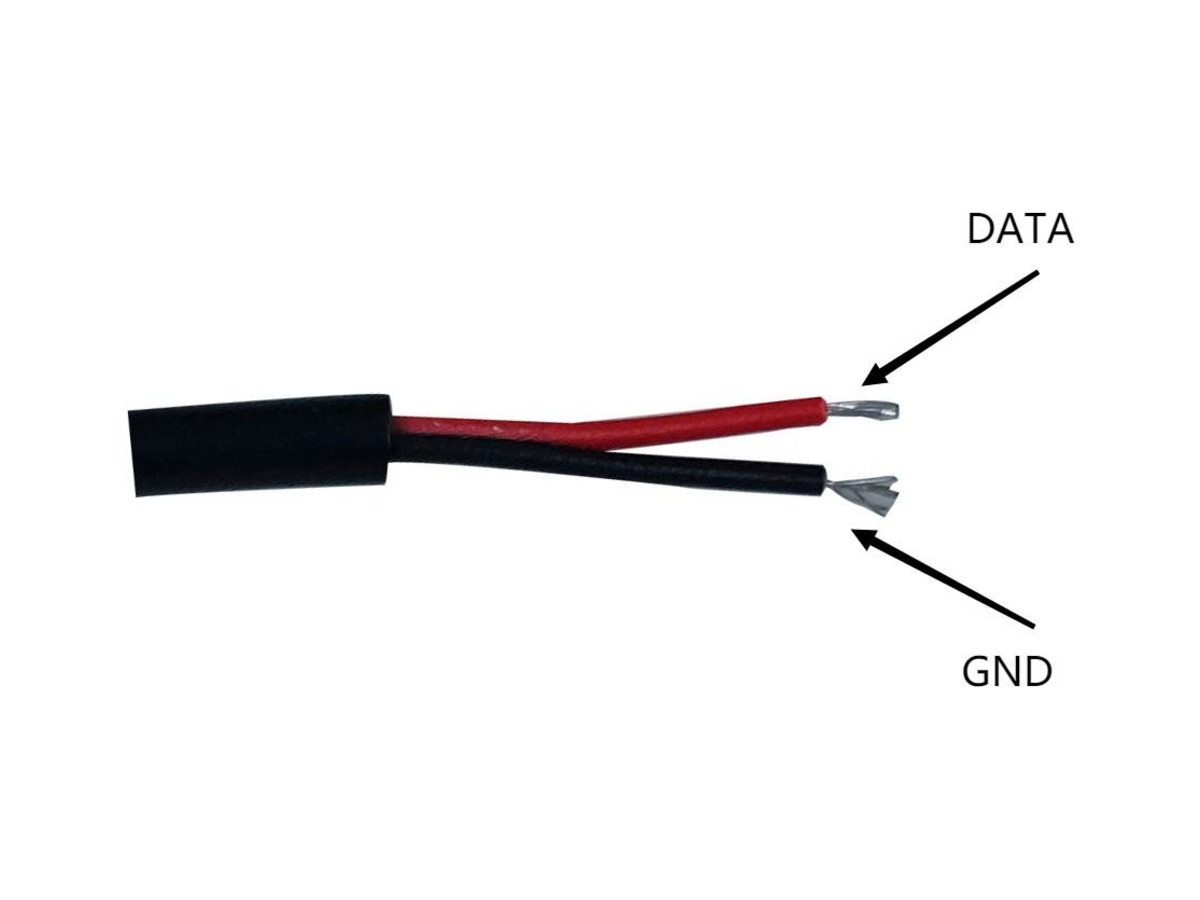

Protocol	1-Wire · two-wire design: red DATA, black GND — 24 AWG sheathed lead, tinned ends, no terminal fitted
Operating temperature	−40 °C … +85 °C (1-Wire chip, per the original manufacturer's datasheet; confirm for the supplied version)
Options	Cable length, terminal and other customization options: feasibility, MOQ and cost are confirmed in the quote. Related: TMR-05 adds a green/red LED on the same body; TMR-05B has a crackle-silver finish

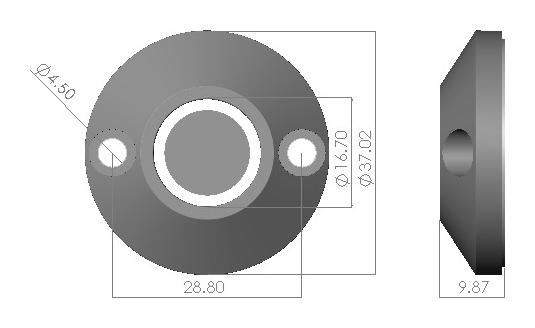

Product dimensions

Typical applications

Intercom & Door-Phone Keys Access Control Time & Attendance Smart Home, 1-Wire & KNX

Frequently asked questions

How is the TMR-05A different from the TMR-05?

Same die-cast zinc body, same 3M VHB adhesive back, same 9.87 mm profile — minus the LED. That leaves exactly two wires, red DATA and black GND, and nothing else to connect.

When is the two-wire version the right choice?

When the controller has no spare output to drive an indicator, or nobody will look at a light anyway — it is quick to install, with only two wires to connect.

Does it keep the no-drill mounting?

Yes — peel the VHB backing, press on, land two cores on the terminal block. Optional screw fixing via two Ø4.50 mm holes at 28.80 mm pitch if you want mechanical backup.
