Readers, Probes & Adapters
Contact probes, panel-mount readers and USB 1-Wire masters.
TMR-01 Copper TM Probe
Chrome-plated copper probe with pre-wired leads — the minimal front-end.
TMR-01A Copper TM Probe with Guide Ring
The TMR-01 with a polymer guide ring — the ring helps guide the key onto the contact.
TMR-02 Panel-Mount TM Probe (DS9092 format)
DS9092-format panel probe with M18×1 nut and 200 mm leads — a familiar front end for controllers.
TMR-02-4P Panel Probe with LED (DS9092L format)
The TMR-02 with a built-in LED — four wires, so the controller can light the ring on a valid read.
TMR-03 Magnetic TM Key Probe
A permanent magnet holds the key on the contact — designed for reads with no pressure and no aiming.
TMR-04 Isolated-Ground TM Probe (ABS capsule)
Copper contacts in an ABS capsule — designed to keep the key ground off the panel.

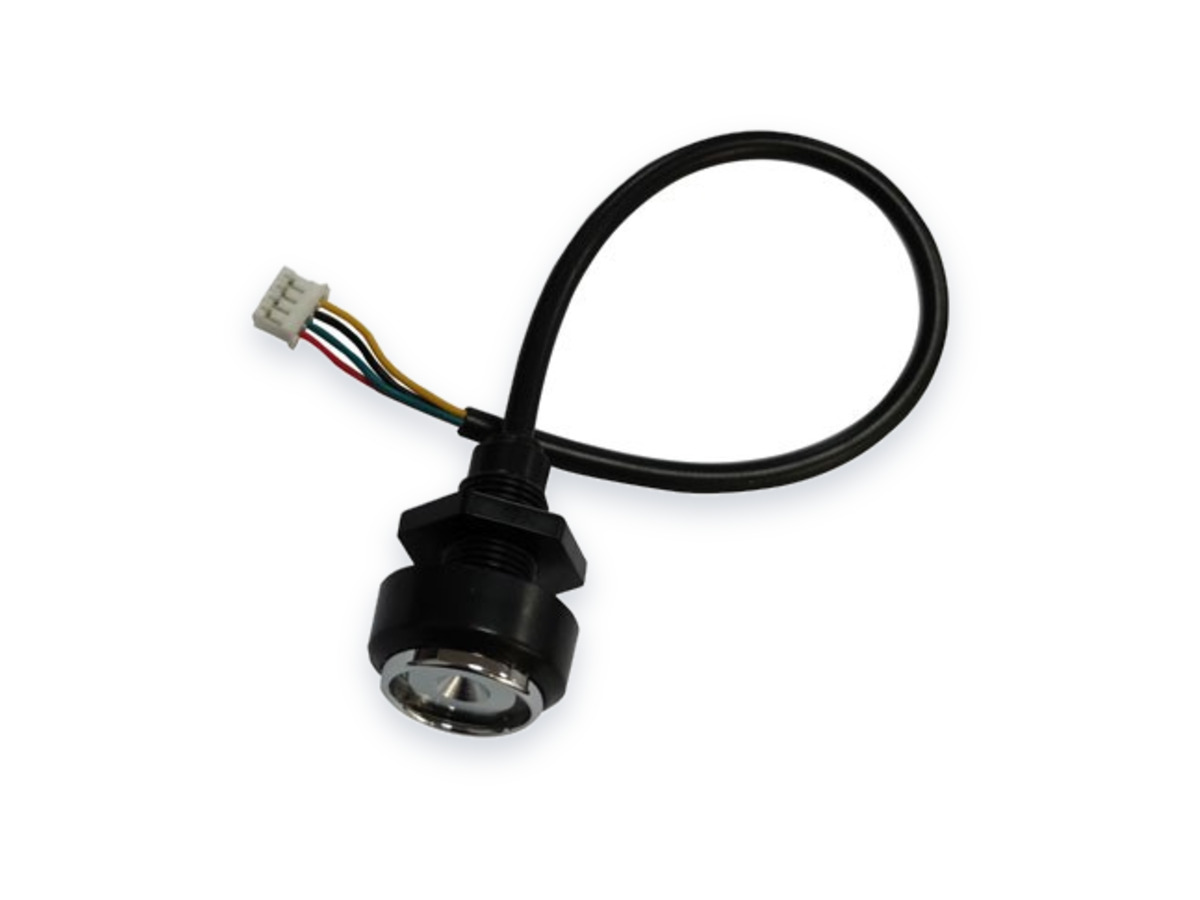

TMR-04A Isolated-Ground TM Probe with Green/Red LED
The TMR-04 with a green/red LED — isolated ground and a two-colour answer at the contact.
TMR-05 Self-Adhesive Flat TM Reader
Flat zinc-alloy reader that sticks on — designed for mounting without drilling.

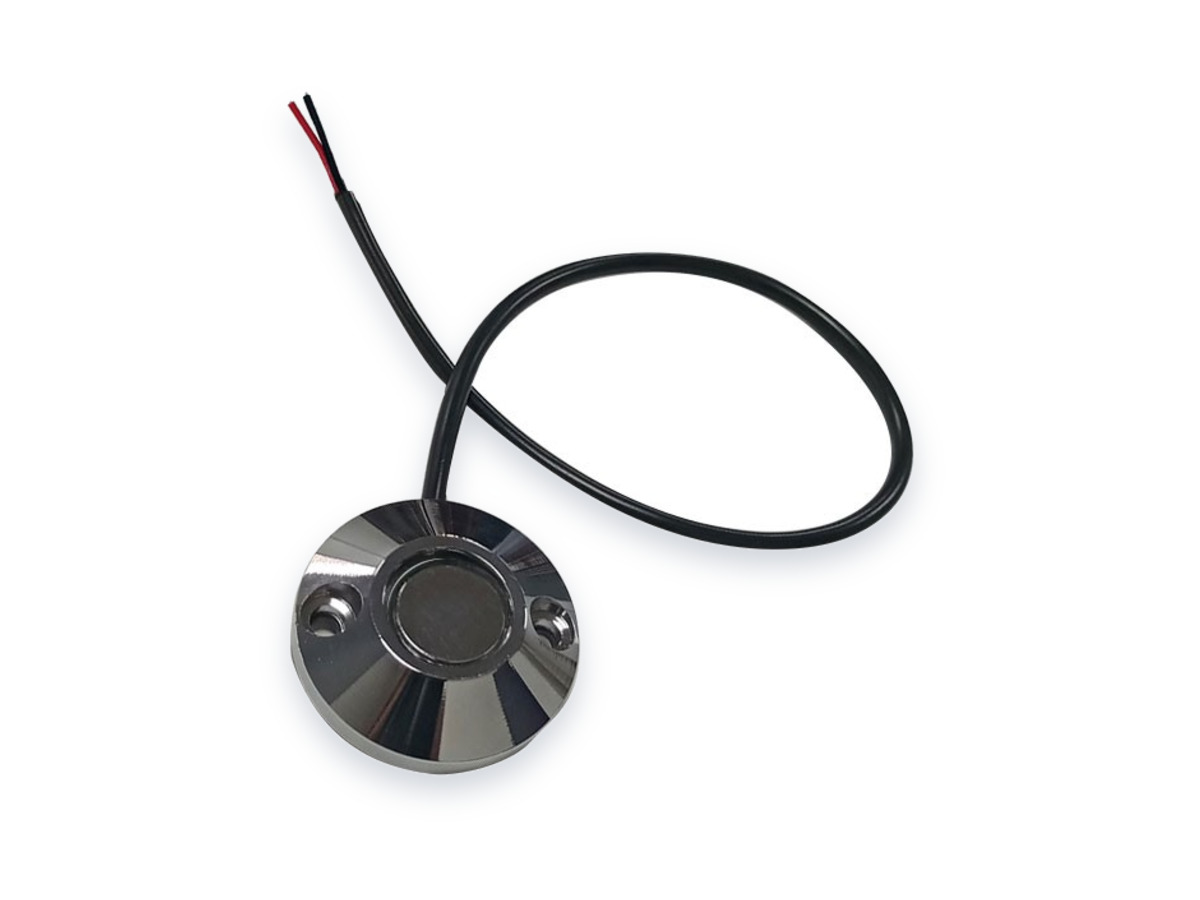

TMR-05A Two-Wire Self-Adhesive TM Reader
The TMR-05 stripped to two wires — DATA and GND, nothing else to connect.

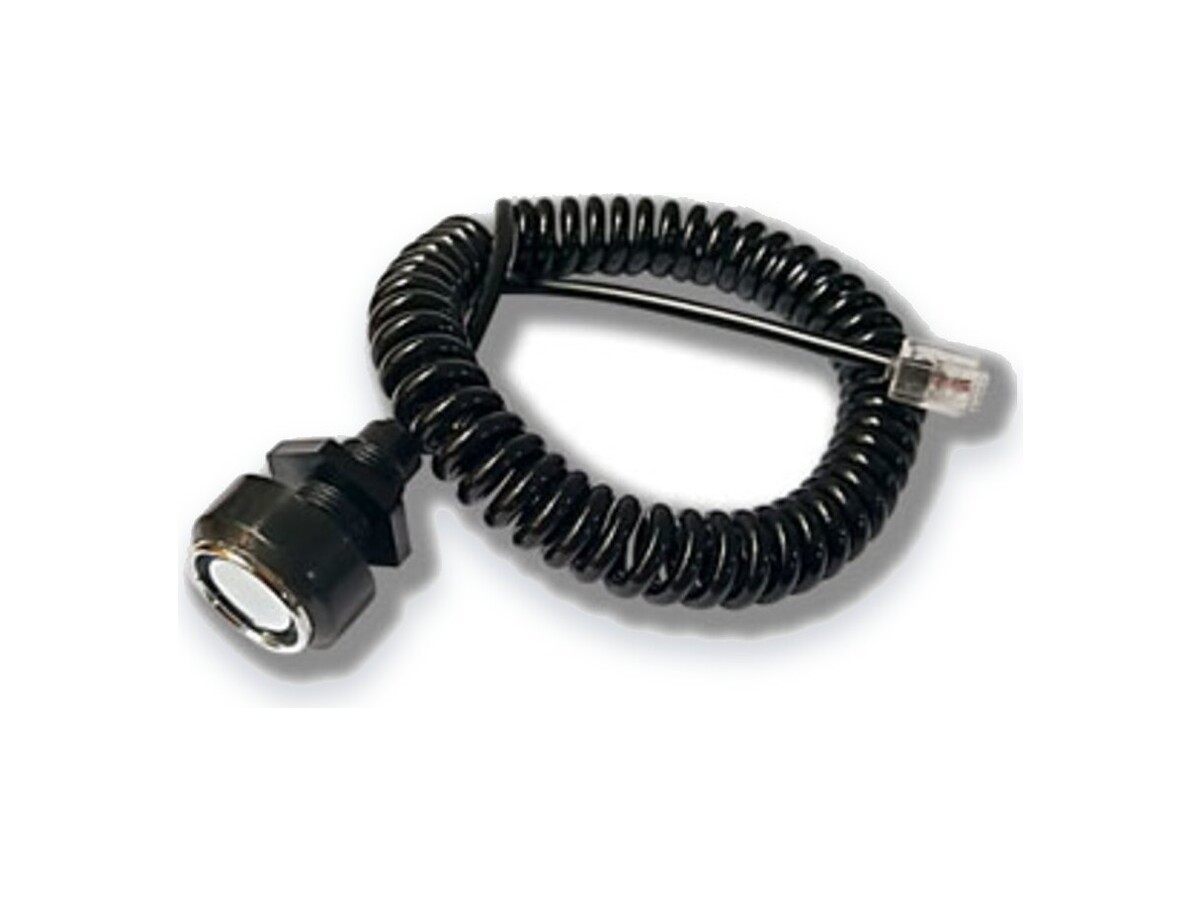

TMR-06 Spring-Cable TM Probe (RJ11)
Coiled cable stretching to 1.8 m with an RJ11 plug — reach the key, not the desk.

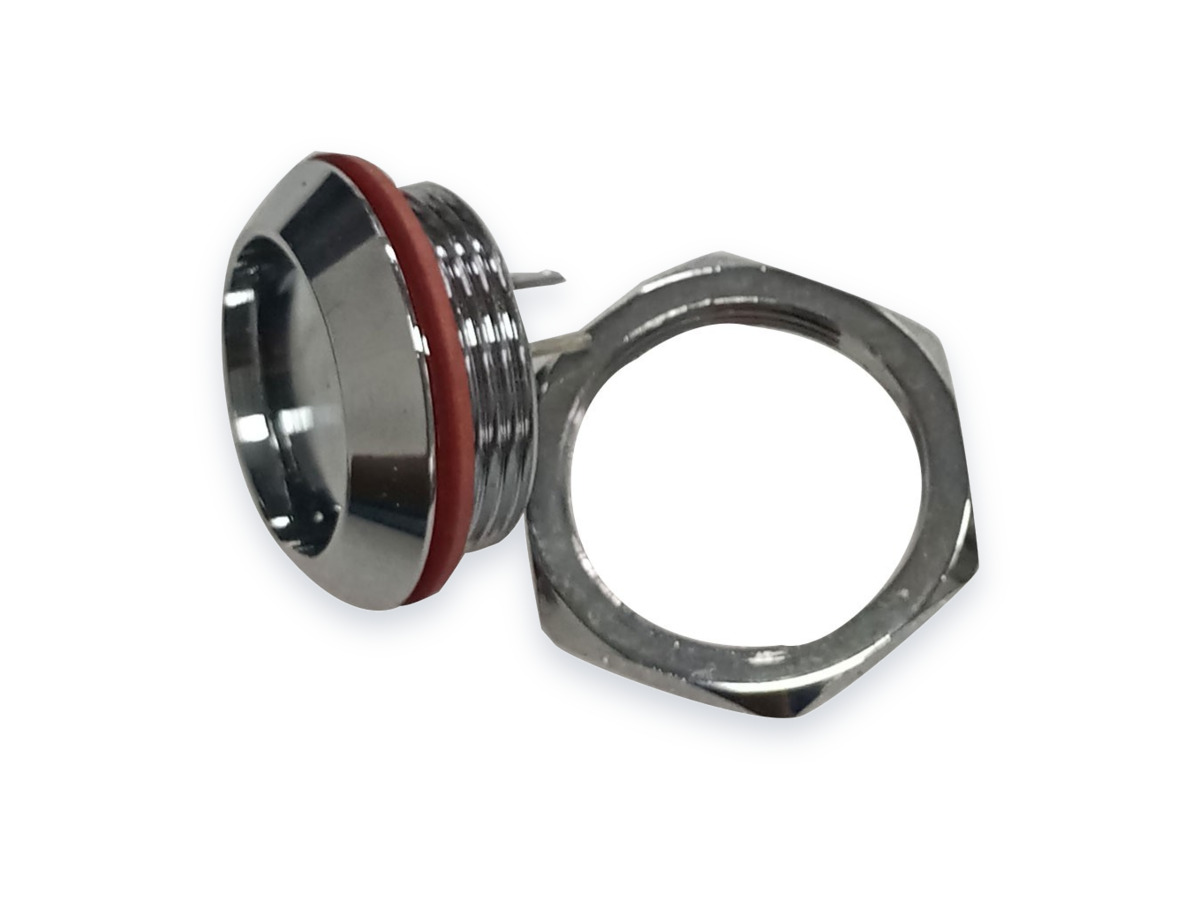

TMR-07A Solder-In PCB Probe (2-pin, threaded)
TM receptor that solders straight onto the PCB — with a thread and nut for panel fastening.
Not sure which model fits?
Tell us the panel, intercom or lock you need to work with — send the model or a photo and we will help identify the part. Sample terms are confirmed by model.
