TMR-07A Solder-In PCB Probe (2-pin, threaded)
TM receptor that solders straight onto the PCB — with a thread and nut for panel fastening.
For device makers who mount the receptor on their own board: two solder pins carry data and ground straight into the PCB — no cable, no connector, no assembly step. The chrome-plated solid copper body threads through the front panel and clamps with the supplied hex nut, so key presses are designed to be taken by the metal and the enclosure rather than by the solder joints. Compared with a wired probe there is no cable to pull loose or route, and the front face can stay flush and serviceable. Consider the plain-pin TMR-07 for light-duty boards, or the threaded TMR-07A wherever the face takes real wear. May also be supplied as a finished pair with nuts fitted for panel-mount use (confirmed in the quote).
Ordering information
| MOQ | Confirmed by model and order when quoting |
|---|---|
| Preparation time | Availability and lead time are confirmed by model and order when quoting |
| Packing | Confirm pack quantity, protection and labelling for the selected model. |
| Samples | Sample quantity, fees and shipping are confirmed for the selected model. |
| Payment | Agree payment terms and the payee in the quotation and invoice. |
| Shipping | Confirm the shipping method, cost and timing for your destination and order. |
| Customization | State ROM, colour, marking and packing needs; feasibility and cost require confirmation. |
Key features
- Two solder pins carry data and ground straight into the PCB — a receptor for device makers.
- Solid copper, chrome-plated, for stable electrical characteristics over years of touching.
- Threaded body with nut (TMR-07A) clamps the front panel so wear loads the metal, not the solder joints.
Specifications
| Chip / compatibility | For DS1990A / TM1990A projects; verify the supplied key and reader versions with the target controller |
|---|---|
| Package | Solid copper, chrome-plated |
| Mounting | 2 solder pins into PCB; 07A adds thread + nut fastening |
| Protocol | 1-Wire® |
| Options | Plain pins (TMR-07) or threaded body with hex nut (TMR-07A); may also be supplied assembled with nuts fitted for panel mounting (confirmed in the quote). Formerly listed as TM08. |

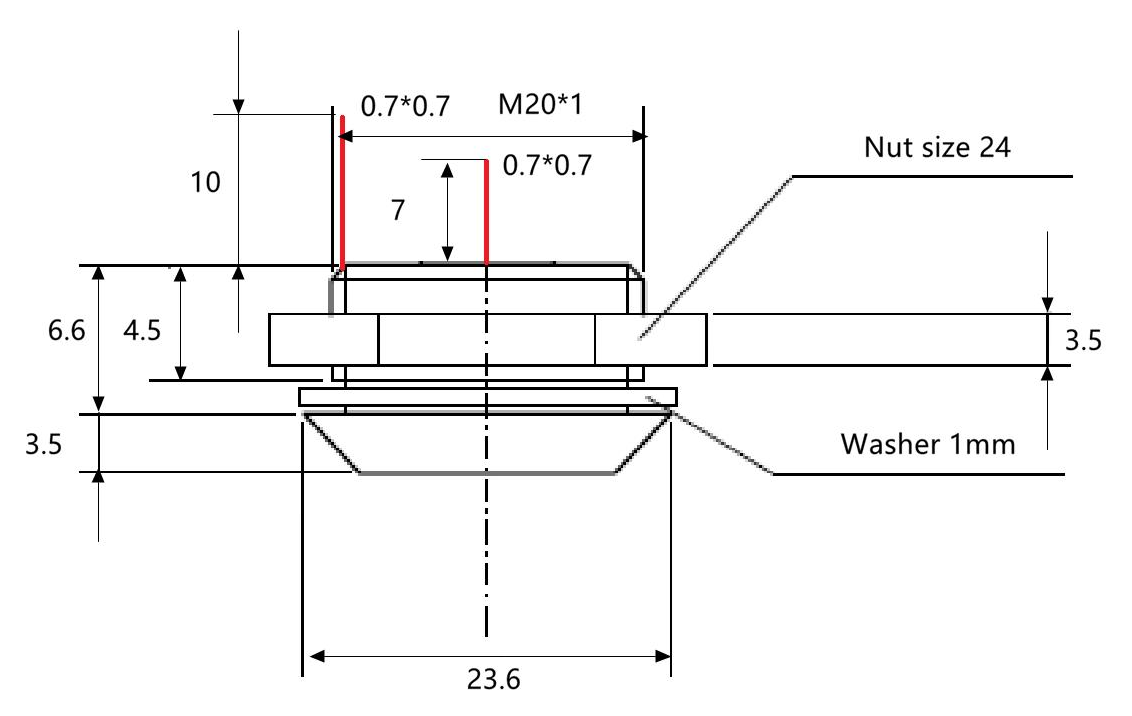

Product dimensions
Typical applications
Frequently asked questions
How does the TMR-07 mount without any cable?
Two solder pins carry data and ground straight into your PCB — no cable, no connector, no assembly step. The TMR-07A version adds a threaded body with hex nut, so daily key presses load the metal and the enclosure, not the solder joints.
TMR-07 or TMR-07A — which one do I need?
Plain pins (TMR-07) if the receptor sits behind your own bezel; threaded body with nut (TMR-07A) if it clamps through a front panel and takes user contact directly. Both are solid chrome-plated copper.
Who is this part intended for?
It is intended for device makers integrating a TM receptor into their own product — for example vending controllers, lockers or industrial equipment — who want the front face on the panel and the connection on the board.
