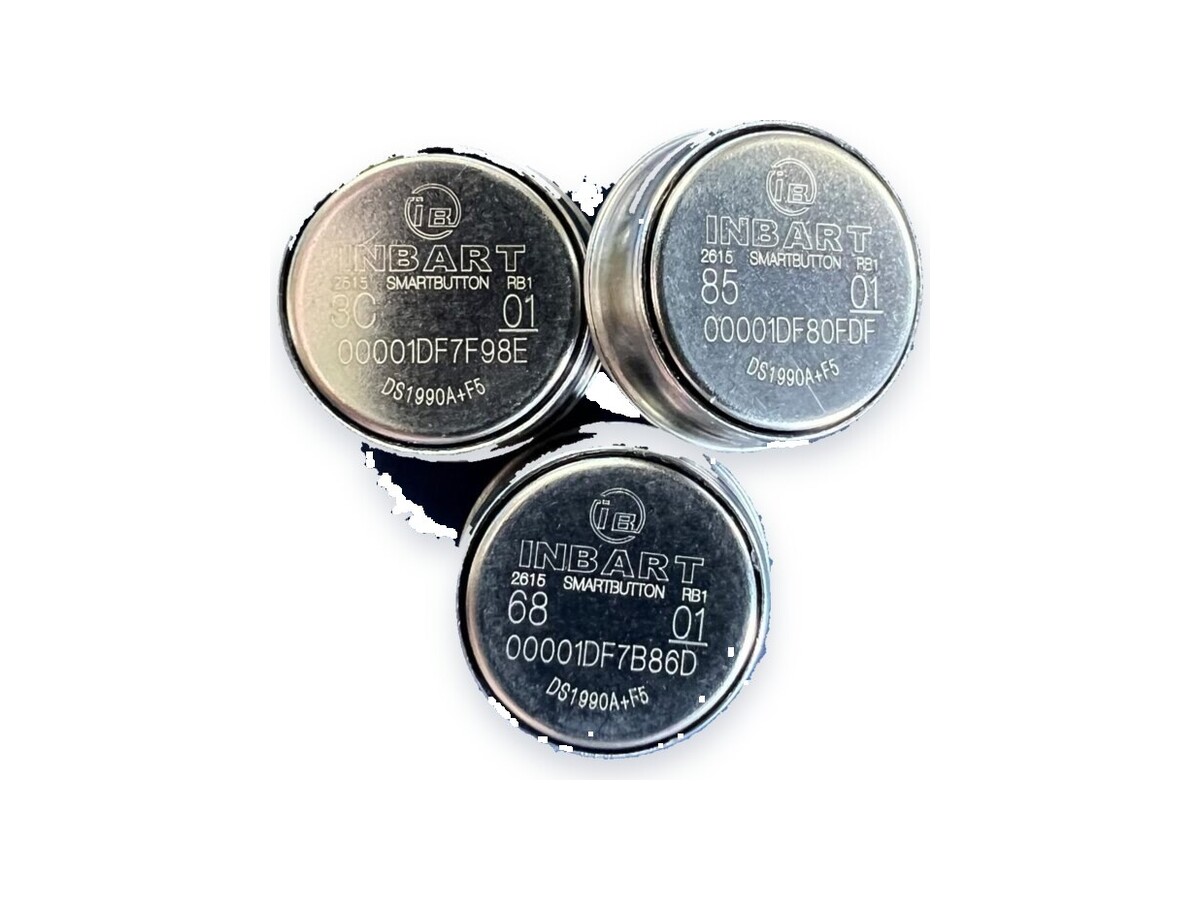

DS1990A-F5 Serial Number iButton
A 64-bit ROM key in the F5 can, built to the DS1990A format.
Not a DS1990A-F5 price. Related model TM1990A-F5, same F5 format: reference price US$0.25–0.50 per piece
TM1990A-F5 bulk order minimum: 500 pieces. 10 free sample pieces, ready in 3 days; you pay sample shipping.
For DS1990A-F5 itself, the price, minimum order and sample terms are confirmed in your quote. Before assuming TM1990A-F5 fits your application, check its drawing and test a sample on your own system. See TM1990A-F5 →
A Touch Memory credential: a 64-bit ROM read over the 1-Wire bus. Supplied in the DS1990A format for existing access-control and intercom installations. Compatibility depends on your reader, controller and firmware; test a sample on your own system before ordering.
Ordering information
| MOQ | Confirmed by model and order when quoting |
|---|---|
| Preparation time | Availability and lead time are confirmed by model and order when quoting |
| Packing | Confirm pack quantity, protection and labelling for the selected model. |
| Samples | Sample quantity, fees and shipping are confirmed for the selected model. |
| Payment | Agree payment terms and the payee in the quotation and invoice. |
| Shipping | Confirm the shipping method, cost and timing for your destination and order. |
| Customization | State ROM, colour, marking and packing needs; feasibility and cost require confirmation. |
Key features
- Original DS1990A reference: fixed 64-bit registration number, accessed through 1-Wire data and ground contacts.
- The original device takes operating power from the data line; this does not imply unlimited service life.
- Specify the full part number and package when ordering; compare the supplied sample with the reader and controller before replacement.
- For batch traceability, ask whether source information, marking photos and duplicate-ID checks are available for the quoted lot; test a sample on your equipment.
Specifications
| Chip / compatibility | DS1990A format |
|---|---|
| Memory | 64-bit ROM, read-only (8-bit family code + 48-bit serial + CRC) |
| Package | F5 can, Ø16.25 × 5.89 mm |
| Protocol | 1-Wire® |
| Operating temperature | −40 °C … +85 °C (1-Wire chip, per the original manufacturer's datasheet; confirm for the supplied version) |
| Options | Colour, marking and other customization options: feasibility, MOQ and cost are confirmed in the quote. |

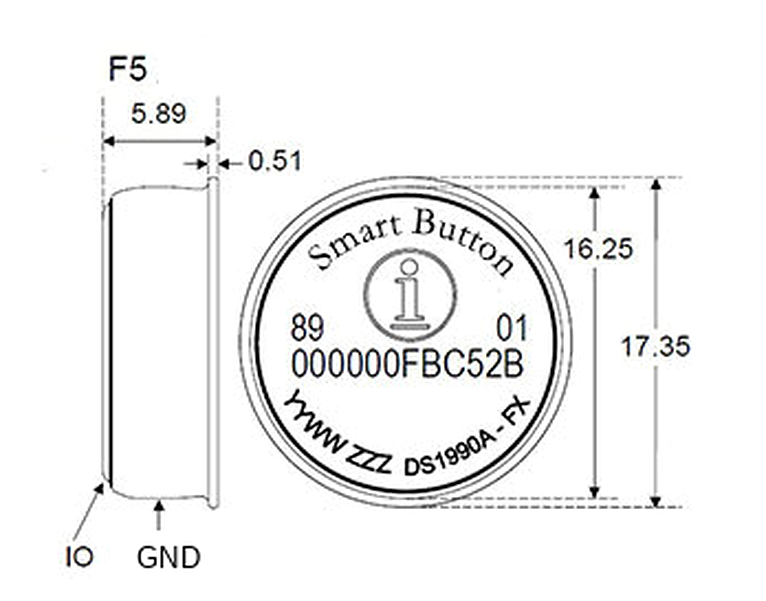

Product dimensions
Inside the stainless can
Typical construction of this can format: a stainless-steel shell, an insulating grommet separating lid from base, and the chip bonded inside. Lid = data contact, base = ground return. Wall thickness, grommet material and other construction details: confirm for the supplied version.
Typical applications
Frequently asked questions
Is the DS1990A-F5 the same as a TM1990A?
They are different product references. TM1990A-F5 is offered for fixed-ID identification, but original DS1990A documentation does not establish the specifications or compatibility of the supplied TM1990A version. Confirm its supply documentation and test samples with the intended reader, controller and firmware before a bulk order.
Can a DS1990A-F5 key be copied or duplicated?
The original DS1990A is read-only and cannot be rewritten — per the original manufacturer's datasheet its ID is laser-programmed and permanent; confirm for the supplied version. RW1990 is a rewritable-ID option, but copying requires confirmation of the supplied blank version, duplicator and firmware, followed by sample writing and target-controller tests. If you need keys that resist simple ID cloning, consider an authenticated part such as the DS1961S with on-chip SHA-1, which also needs support on the host side.
What is the family code of the DS1990A?
01h. The 64-bit ROM is structured as an 8-bit family code (01h for the DS1990A), a 48-bit unique serial number and an 8-bit CRC.
What is the minimum order quantity and lead time?
Minimum order quantity, price and lead time for this model are confirmed with your quote. Tell us the model, annual volume, your reader or controller model and any customization (colour, laser logo, reserved ROM range), and we will confirm pricing, availability, lead time and sample options.
