TM1990A-F5

TM1990A-F5 Touch Memory Key

Cost-optimised DS1990A equivalent — the volume workhorse for intercom keys.

Our highest-volume line: a fully DS1990A-compatible 64-bit ROM key produced to a cost-optimised BOM for distributors and intercom key services. Reads correctly on every mainstream TM reader and controller.

Key features

Full DS1990A / DS1990R / i1990A compatibility — reads identically on every mainstream TM reader and controller.
Family code 01h, unique 48-bit serial, 8-bit CRC — factory-lasered and 100% tested.
Cost-optimised BOM for volume issuance — our highest-running line at over 5 million pcs/month.
Standard packing 200 pcs/ESD bag, 2 bags/box; free fitting into fobs on request.

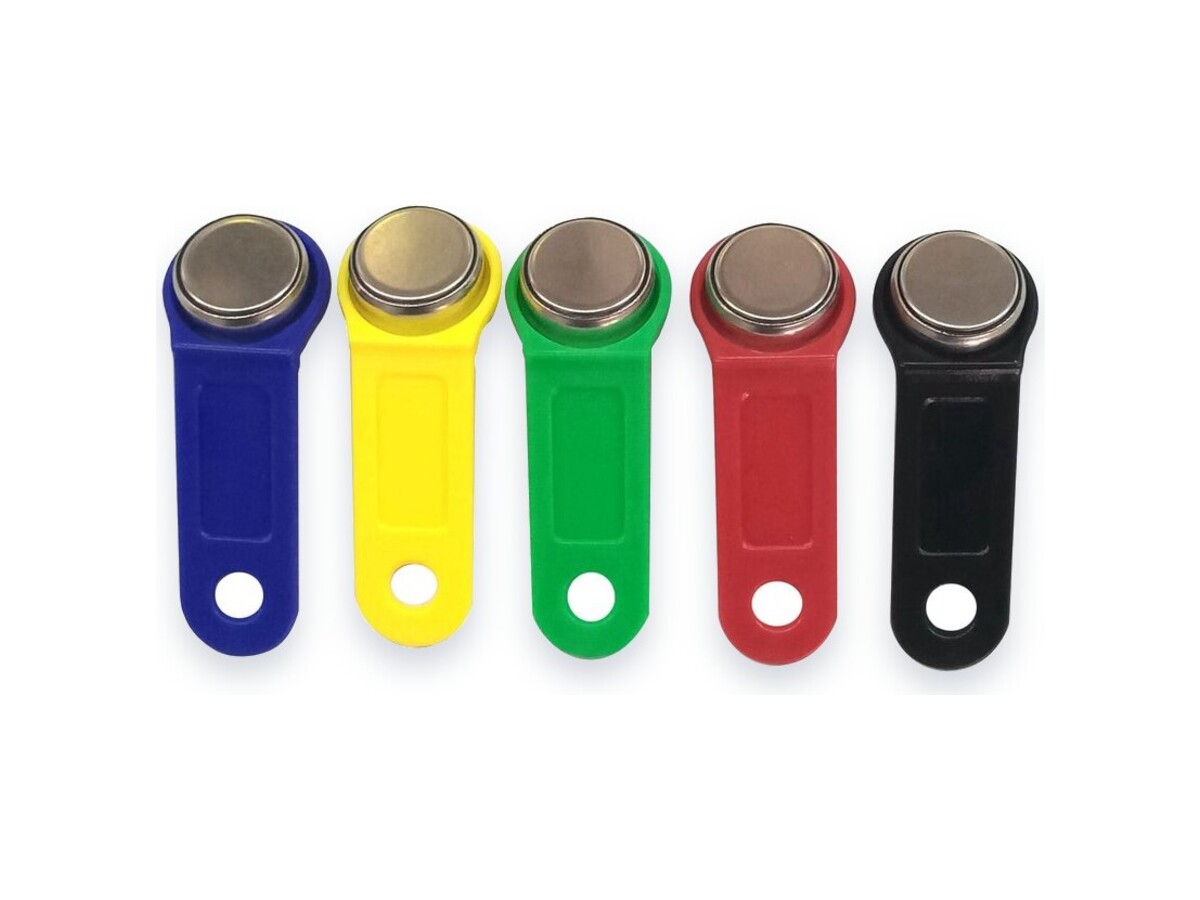

Custom ROM ranges, 12 stock housing colours, laser logo and private-label packaging.

Specifications

Chip / compatibility	Fully compatible with DS1990A, DS1990R and i1990A; family code 01h
Memory	64-bit ROM: 8-bit family code + 48-bit unique serial + 8-bit CRC, factory-lasered
Package	F5 can Ø16.25 × 5.89 mm (F3: Ø16.25 × 3.10 mm), 304 stainless steel
Protocol	1-Wire, 16.3 kbit/s, read in under 5 ms
Operating temperature	−40 °C … +85 °C
Options	Standard packing 200 pcs/ESD bag, 2 bags/box; custom colours and laser marking
Options	Factory model TMK-TM1990 · own silicon: custom family code (01h → 08h or any value) and custom CRC rule for closed systems

Inside the stainless can

F5 can: Ø16.25 × 5.89 mm · F3 can: Ø16.25 × 3.10 mm

64-bit ROM: 8-bit family code + 48-bit serial + 8-bit CRC

A 0.25 mm solid stainless shell, a UV-stable polypropylene grommet isolating lid from base, and the die bonded inside. Lid = data contact, base = ground return.

Ordering information

MOQ	100 pcs
Lead time	3–7 days for stock items, 10–15 days for OEM
Packing	Bulk ESD bags (100–200 pcs/bag, 2 bags/carton); blister or header cards for retail on request
Samples	Free samples for volume buyers — courier at cost
Payment	T/T bank transfer; other terms negotiable for repeat orders
Shipping	DHL / FedEx / UPS air express; sea or rail freight for pallet volumes
Customization	ROM ranges · housing colours · laser logo · private label

Typical applications

Intercom & Door-Phone Keys Access Control Time & Attendance

Frequently asked questions

Can the family code or CRC rule be customised?

Yes — this is the advantage of our own silicon. The 8-bit family code is not locked to 01h: we can set 08h or any value you specify, and the CRC generation rule can be re-defined to your specification. Controllers that filter on family code or verify your CRC then accept only keys from your batches — a closed system standard blanks cannot enter. Both options are agreed before the wafer run and suit volume OEM programmes.

Will a TM1990A-F5 work in a reader made for DS1990A?

Yes. Any reader or controller that speaks the 1-Wire ROM protocol reads a TM1990A exactly as it reads a DS1990A. Physical fit is identical too — both use the F5 can, 16.25 mm across the flange.

Can I get custom ID ranges and colours on the TM1990A?

Yes. We allocate a reserved serial-number block so no two batches collide on the same site, and hold twelve stock housing colours with laser logo and private-label packaging available. Reserving the ID range must be agreed before the first batch.

How are TM1990A keys packed for shipping?

Standard packing is 200 pcs per ESD bag, 2 bags per box; carton box with 10,000 pcs (no fob) or 5,000 pcs (with fob). Fitting the button into a fob is free of charge. Blister or header-card retail packaging is available on request.
